T and H sensors - compact
DPR*

Características gerais

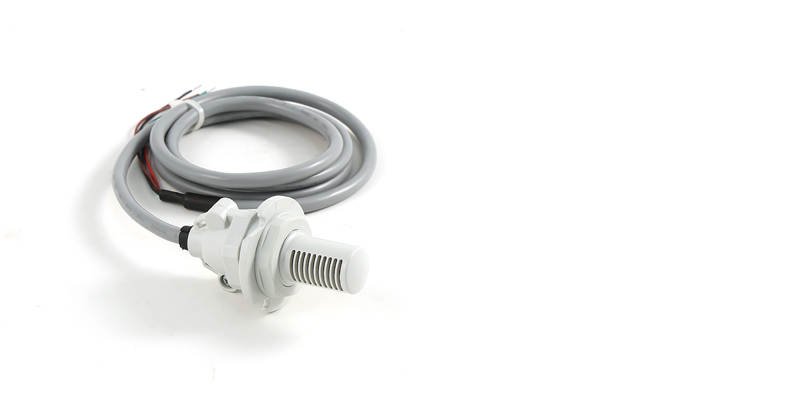

The compact probe is used when temperature and humidity need to be measured in the HVAC sector, and in particular in the following applications:
- Air handling units;
- Air-to-air heat recovery units;
- CRAC units (Computer room air conditioning units), both perimeter and In-row;
It is fitted with an NTC temperature sensor 10K@25°C β=3435 and humidity sensor with 0.5-4.5V output.
The casing guarantees IP40 protection and is designed for panel mounting or fastening using the ring nut provided.
Available with 1 m and 3 m long cables.
Documentação
Technical
-
2D/3D drawings
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código 2d-3d Compact temperature and humidity sensor Descrição 2D-3D drawings Idioma ALL Data 08/03/2021 Versão R0 -
Technical Leaflets
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +050000585 Descrição Sensore compatto temperatura e umidità / Compact temperature and humidity sensor Idioma ENG ITA Data 21/07/2016 Versão 1.2
Commercial
-
Other related documentation
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +800004030 Descrição Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico Idioma ITA Data 05/04/2023 Versão 1.2
Images
-
High resolution images
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código PH16LDP301-remote-temperature-humidity-sensor Descrição CAREL T and H sensor compact - Temperature, humidity and Indoor Air Quality sensor - Sensor and protection device Idioma ALL Data 11/03/2022 Versão R.0
