c.pCOe
Características gerais

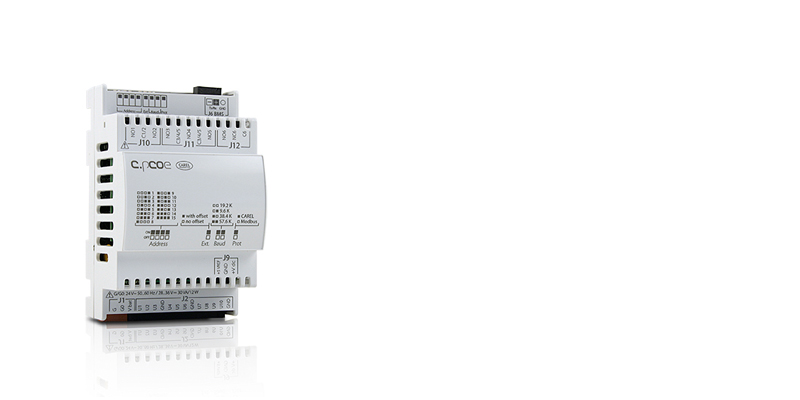

c.pCOe is the I/O expansion card, built using with CAREL-proprietary microchip, that allows considerable flexibility in the configuration of the various pins, both as inputs (support for passive NTC, PTC, PT1000 probes, digital inputs and active voltage and current probes) and as outputs (0-10 V, PWM).
The c.pCOe card is available in 2 versions:
- Basic version, with a total of 16 I/O channels available, 10 of which can be configured as analogue inputs or outputs, and 6 relays.
- Enhanced version, same I/O configuration as the basic version, with the addition of a built-in driver for managing a CAREL unipolar electronic expansion valve.
-
Mais
- DIN rail mounting (4 DIN)
- 10 universal channels (inputs/outputs)
- 6 relays
- 24 Vac/Vdc power supply
- Integrated RS485 port
- c.Suite and 1tool libraries for rapid integration
- Built-in unipolar EXV driver (Enhanced version)
- Ultracap module support (Enhanced version)
Documentação
Technical
-
2D/3D drawings
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código 2d-3d cpCOe Descrição 2D-3D drawings Idioma ALL Data 01/12/2016 Versão R0 -
Manuals
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +0300057EN Descrição c.pCO Programmable Controller Idioma ENG Data 20/06/2023 Versão 1.6 -
Technical Leaflets
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +0500059IE Descrição P+E*: c.pCOe – Espansione controllo programmabile / Programmable controller expansion Idioma ENG ITA Data 14/02/2022 Versão 1.4 Código +0500059FR Descrição P+E*: c.pCOe – Expansion commande programmable / Programmable controller expansion Idioma ENG FRE Data 14/02/2022 Versão 1.4
Images
-
High resolution images
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código PH16LP+305-cpCOe-enhanced Descrição c.pCOe-CAREL-Programmable Controls-I/O expansions Idioma ALL Data 02/09/2021 Versão R.0
