boss micro panel

BMBS*P****

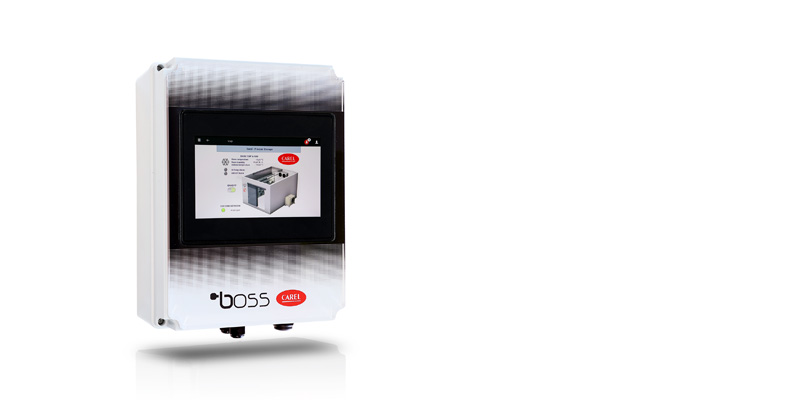

boss micro panel
  • Características gerais

    boss micro panel completes the boss family with a range of plug & play solutions for systems with up to 30 devices, including both the supervisor hardware and a built-in 7” touch display.



    The solution is ready to be installed without needing any additional wiring or assembly, while the embedded Wi-Fi hotspot can be used to connect locally to the boss device for initial setup and other service activities, including from a PC or smartphone.



    The built-in touch display makes boss micro panel especially interesting for all refrigeration and HVAC applications where the end user needs to monitor system status at a glance, and act promptly to resolve any critical issues.



    boss micro panel is available in various versions for managing systems with up to 15 or 30 connected devices. The range also differs according to the types of built-in connectivity:

    • Ethernet only;
    • Ethernet + Wi-Fi;
    • Ethernet + Wi-Fi + 4G.



    The additional space available for a relay module, for example to be connected to an alarm signalling device, makes the solution even more flexible.



    Part number table



    Part number Name Supervisor hardware Connectivity
    BMBSTP7RP0 wired pocket boss-micro (15 devices, 150 varibles) Ethernet
    BMBSTP7FP0 Wi-Fi pocket Ethernet, Wi-Fi
    BMBSTP7MP0 Wi-Fi & 4G pocket Ethernet, Wi-Fi, 4G
    BMBSEP7RP0 wired enhanced boss-micro enhanced (30 devices, 300 varibles) Ethernet
    BMBSEP7FP0 Wi-Fi enhanced Ethernet, Wi-Fi
    BMBSEP7MP0 Wi-Fi & 4G enhanced Ethernet, Wi-Fi, 4G
  • Mais

    System under control

    Continuous monitoring of the status of connected devices, available from the built-in display; local and remote alarm management and parameter settings.

    Plug & play

    Simplified wall mounting, configuration wizard and space available for the CAREL relay module.

    Independent connection

    The built-in 4G modem can be used to receive alarms (SMS/email/Telegram) without relying on the local network.

    Family feeling

    boss micro panel retains all the monitoring and system optimisation features that defined the boss family supervisors.

    CE marked product

    Regulatory compliance guarantees electrical safety for operators and for the environment where the product is installed, as well as no interference with other electronic or radio devices in the vicinity.



Documentação

Technical

  • Certificates
    Código Descrição Idioma Data * Versão
    Código CE Declaration for micro-boss Panel

    Descrição CE Declaration for micro-boss Panel

    Idioma ENG

    Data 06/03/2025

    Versão R.0

  • Manuals
    Código Descrição Idioma Data * Versão
    Código +0300088PT

    Descrição boss Supervisor local para sistemas de médias e grandes dimensões

    Idioma POR

    Data 06/09/2022

    Versão 1.4

    Código +0300088DE

    Descrição boss: Lokale Überwachungslösung für mittelgroße und große Anlagen

    Idioma GER

    Data 06/09/2022

    Versão 1.4

    Código +0300088EN

    Descrição boss: Local supervisor for medium and large systems

    Idioma ENG

    Data 06/09/2022

    Versão 1.4

    Código +0300088ES

    Descrição boss: Supervisor local para sistemas de tamaño medio y grande

    Idioma SPA

    Data 06/09/2022

    Versão 1.4

    Código +0300088FR

    Descrição boss: Superviseur local pour les systèmes de taille moyenne et grande

    Idioma FRE

    Data 06/09/2022

    Versão 1.4

    Código +0300088IT

    Descrição boss: Supervisore locale per sistemi di medie e grandi dimensioni

    Idioma ITA

    Data 06/09/2022

    Versão 1.4

  • Quick Guide
    Código Descrição Idioma Data * Versão
    Código +040000260

    Descrição boss - Guida rapida - User manual - Mode d’emploi - Technisches Handbuch - Manual del usuario - Краткое руководство

    Idioma ENG  FIN  FRE  GER  ITA  RUS  SPA

    Data 23/09/2022

    Versão 1.2

  • Technical Leaflets
    Código Descrição Idioma Data * Versão
    Código +0500185ML

    Descrição BOSS-MICRO PANEL START GUIDE - Supervisory solution for small and medium installations

    Idioma ENG  FRE  GER  ITA

    Data 12/02/2025

    Versão 1.0

    Código +0500186ML

    Descrição BOSS-MICRO PANEL - MECHANICAL INSTALLATION

    Idioma ALL

    Data 12/02/2025

    Versão 1.0

    Código +050003572

    Descrição Modulo relè per boss mini e boss micro

    Idioma ENG  ITA

    Data 08/11/2024

    Versão 1.2

    Código +0500152IE

    Descrição μboss: Istruzioni di montaggio / Assembly procedure

    Idioma ENG  ITA

    Data 06/07/2023

    Versão 1.4

    Código +0500191IE

    Descrição Best practices per messa in sicurezza boss range - Best security practices for the boss range

    Idioma ENG  FRE  GER  ITA  POR  SPA

    Data 04/08/2022

    Versão 1.0


Commercial

  • Brochure
    Código Descrição Idioma Data * Versão
    Código +3000268PT

    Descrição boss micro panel - Soluções plug&play de monitoramento com tela integrada para sistemas até 30 dispositivos

    Idioma POR

    Data 14/03/2025

    Versão 1.0

    Código +3000268ES

    Descrição boss micro panel - Soluciones de monitorización plug&play con pantalla integrada para instalaciones de hasta 30 dispositivos

    Idioma SPA

    Data 14/03/2025

    Versão 1.0

    Código +3000268IT

    Descrição boss micro panel - Soluzioni plug&play di monitoraggio con display integrato per impianti fino a 30 dispositivi

    Idioma ITA

    Data 14/03/2025

    Versão 1.0

    Código +3000268EN

    Descrição boss micro panel - Plug&play monitoring solutions with built-in display for systems with up to 30 devices

    Idioma ENG

    Data 14/03/2025

    Versão 1.0
