µChiller process

UCHBP000P0* UCHBD*00P1*
µChiller process
  • Características gerais

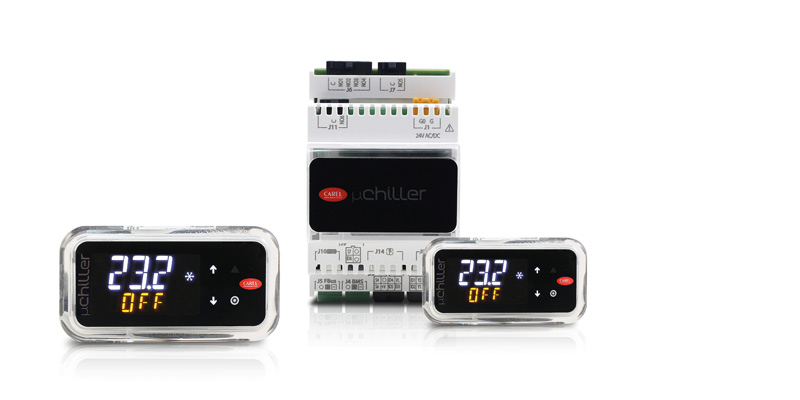

    μChiller Process is the CAREL solution for complete management of air/water and water/water process chillers.

    The maximum configuration manages 2 compressors in a single circuit. The distinctive element of μChiller Process is complete control of high-efficiency units through integrated management of two electronic valves (ExV) - expansion and hot gas bypass - and brushless BLDC compressors.This guarantees a prompt response of the compressor as well as higher protection and reliability, without however neglecting high unit efficiency.

    The user terminal allows wireless connectivity with mobile devices and is built-in on the panel mounted models, or sold separately on DIN rail mounted models. The CAREL “APPLICA” app can be used to download and send operating logs relating to serious alarm situations that occur on the unit.

  • Mais

    Usability

    • Hot gas bypass and tank management.
    • Two user pumps.

    Efficiency and reliability

    • Complete control of the compressor envelope, ensuring maximum reliability.
    • Advanced management of DC inverter compressors with EEV synchronisation and protection functions.

    Wireless connectivity with APPLICA

    • Innovative graphic interface.
    • Quick unit commissioning.
    • Download and send data logs on alarm situations.

    Refrigerants

    Compatibility with natural refrigerants and low-GWP mixtures to meet the needs of unit manufacturers in terms of regulations such as F-Gas, EPA, ...



  • Vídeo



Documentação

Technical

  • Manuals
    Código Descrição Idioma Data * Versão
    Código +0300074IT

    Descrição μChiller Process Controllo per Chiller di processo

    Idioma ITA

    Data 27/06/2022

    Versão 1.3

    Código +0300074EN

    Descrição μChiller Process Controller for process chillers

    Idioma ENG

    Data 27/06/2022

    Versão 1.3

    Código +0300074DE

    Descrição μChiller Process Steuergerät für prozesstechnische Kältesätze

    Idioma GER

    Data 27/06/2022

    Versão 1.3

  • Technical Leaflets
    Código Descrição Idioma Data * Versão
    Código +0500147IE

    Descrição μChiller Process Controllo elettronico per chiller di processo / Electronic control for process chiller

    Idioma ENG  ITA

    Data 26/05/2022

    Versão 1.4


Commercial

  • Brochure
    Código Descrição Idioma Data * Versão
    Código +3000212IT

    Descrição μchiller process: La soluzione per unità chiller nell’industria

    Idioma ITA

    Data 11/09/2020

    Versão 1.0

    Código +3000212EN

    Descrição μchiller process: The solution for chillers in industry

    Idioma ENG

    Data 11/09/2020

    Versão 1.0

    Código +3000212DE

    Descrição μchiller process: Die Lösung für industrielle Kältesätze

    Idioma GER

    Data 11/09/2020

    Versão 1.0


Images

  • High resolution images
    Código Descrição Idioma Data * Versão
    Código PH17LUC301-µChiller

    Descrição CAREL-HVAC controls-μChiller Series-μChiller

    Idioma ALL

    Data 01/09/2021

    Versão R.0
