Heosbox HFC






Características gerais

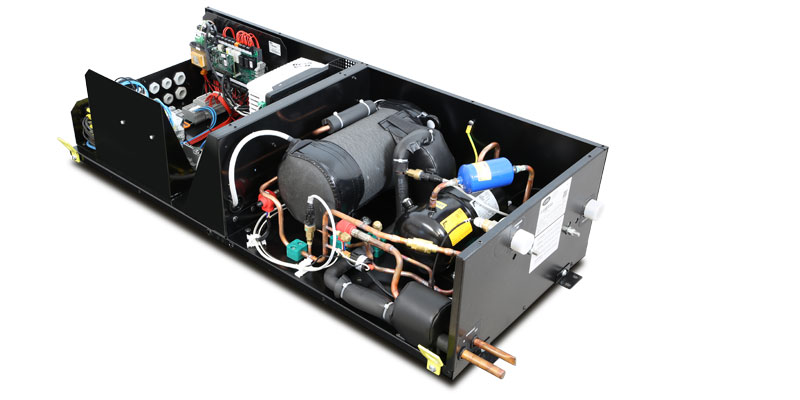

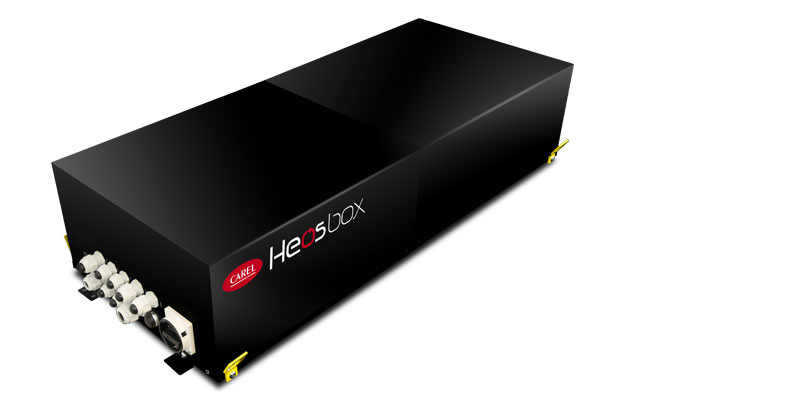

Heosbox is a condensing unit for waterloop applications entirely engineered and manufactured by CAREL.

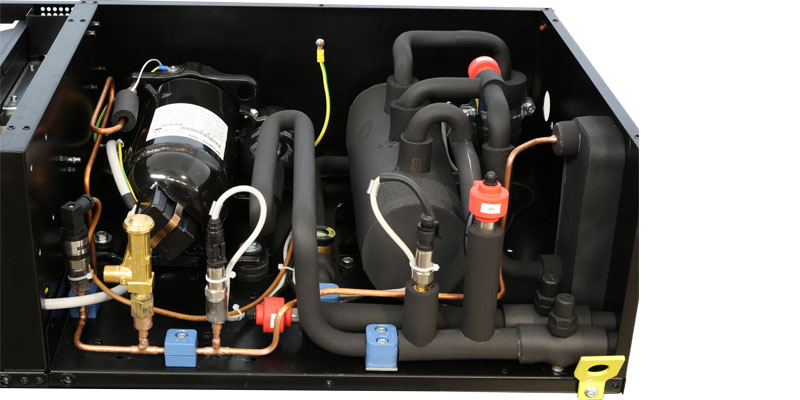

Heosbox incorporates all of the features of the Heos solution, starting with the controller and the components for continuous modulation:- BLDC compressors. DC technology allows greater efficiency through permanent magnet brushless motors, the widest range of modulation (25-100%), high reliability due to a reduction in electrical and mechanical stress, low noise and extremely compact dimensions. Both vertical and horizontal solutions are available, with a wide range of brands and performance.
- DC drivers. CAREL drivers for Heos applications feature high electrical efficiency and reliability of both the driver and the entire solution, thanks to perfect integration with the system (envelope control, safe torque off, crankcase heater...), as well as electromagnetic compatibility . Class B firmware is available, with integrated protection and consequent savings in installation costs.
- Electronic expansion valve with stepper motor. Operation is managed perfectly in synch with the variable-speed compressor, the evaporation temperature can be controlled continuously to ensure efficiency in all operating conditions. The use of electronic valves also allows preventive and alarm monitoring actions, for greater reliability of the entire solution.

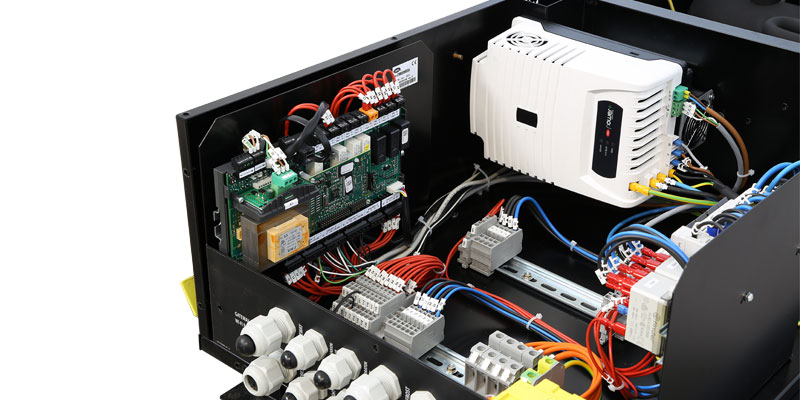

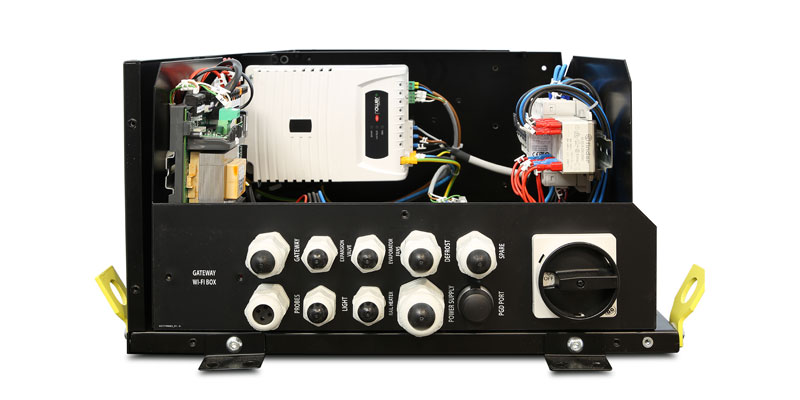

- Heos controller. All-in-one solution for:
- cabinet temperature and superheat control
- compressor management (envelope, COP calculation, oil recovery procedures)
- condensing stage control
- lights, defrosts, fans and alarms
Heosbox is available for R448A/R449A, R410A synthetic refrigerants, with both CE and UL certification. Capacities up to 10 kW in MT conditions (-10°C/40°C) and 3.5 kW in LT conditions (-30°C/40°C) to satisfy a wide range of applications.
Performance combined with ease of use thanks to the default pre-configuration for immediate use.Heosbox is also supplied with integrated services developed specifically for this solution, which include remote monitoring, data analysis tools and advanced algorithms for predictive maintenance.
-
Mais
Heos solution available
Faster time-to-market for early adopters.
Quality and reliability
All of the experience and know-how available in a 100% Carel solution
One stop shop
CAREL as the sole supplier and partner
Usability
Pre-configured and ready-to-use unit.
Local and remote supervision
Dedicated advanced IOT services included in the offering.
All the unique features and advantages of Heos technology:
Continuous system modulation
Variable speed compressors (BLDC) and electronic expansion valves with stepper motor.
Energy efficiency
The decentralised approach and continuous modulation make it possible to adapt operation perfectly to the demands of the cabinet in all conditions. Synchronisation of control actions and possibility to read COP in real time.
Maximum food preservation quality
Continuous modulation of the compressor and EEV electronic valves ensures excellent temperature and humidity stability in the cabinets.
Documentação
Technical
-
Manuals
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +0300089IE Descrição HEOS BOX Manuale d’uso/User manual Idioma ENG ITA Data 27/01/2022 Versão 1.4 Código +0300097EF Descrição Heosbox Assembly instructions, including information for use and maintenance North America version Instructions pour l’assemblage, avec des informations relatives à l’utilisation et à l’entretien Versions North America Idioma ENG FRE Data 17/06/2021 Versão 1.0 -
Selection tool
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código HFC sizing tool Descrição Idioma ALL Data 27/03/2023 Versão 6.1
Commercial
-
Brochure
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +3000207IT Descrição Heosbox L’avanguardia della tecnologia per i tuoi cabinet semi plug-in Idioma ITA Data 08/09/2020 Versão 1.0 Código +3000207EN Descrição Heosbox Cutting-edge technology for your semi plug-in cabinets Idioma ENG Data 08/09/2020 Versão 1.0
Images
-
High resolution images
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código PH20LUP304-heosbox Descrição CAREL-Plug-in and Semi plug-in-Heos-Heosbox HFC Idioma ALL Data 17/09/2021 Versão R.0 Código PH20LUP307-heosbox-open Descrição CAREL-Plug-in and Semi plug-in-Heos-Heosbox HFC Idioma ALL Data 17/09/2021 Versão R.0 Código PH20DUP301-heosbox-detail Descrição CAREL-Plug-in and Semi plug-in-Heos-Heosbox HFC Idioma ALL Data 17/09/2021 Versão R.0 Código PH20DUP302-heosbox-detail Descrição CAREL-Plug-in and Semi plug-in-Heos-Heosbox HFC Idioma ALL Data 17/09/2021 Versão R.0 Código PH20DUP304-heosbox-detail Descrição CAREL-Plug-in and Semi plug-in-Heos-Heosbox HFC Idioma ALL Data 17/09/2021 Versão R.0
