humiFog direct
UA***D

Características gerais
humiFog direct is the new solution by CAREL entirely dedicated to ambient adiabatic humidification.

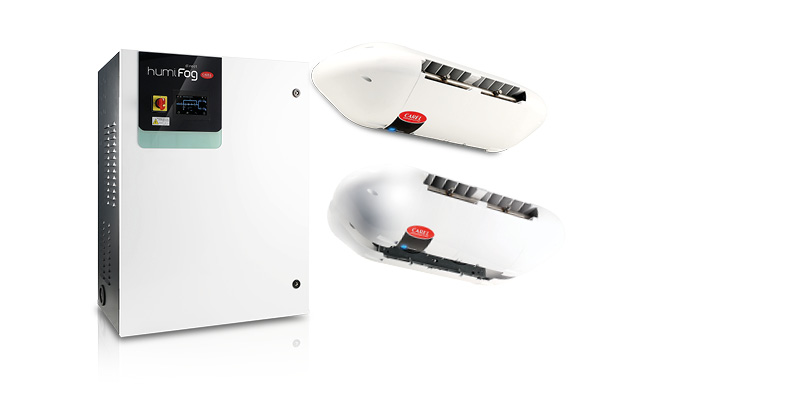

humiFog direct is a high pressure atomiser which generates a constant water pressure of 70 bar. Thanks to the new ventilation heads, water is atomised in very fine droplets distributed in the environment. The powerful flow of the fans favours spontaneous absorption of atomisation in the air. Relative humidity can thus be controlled wherever required and the advantages of evaporative cooling can be exploited, "absorbing" heat generated by machines inside production sites and decreasing temperature with very low energy consumption.
humiFog expands the humiFog “family” of high-pressure atomisers, extending the range of available capacities, and introducing a wealth of new functionality, which makes this product even easier to install and simpler to use. The control cabinet has everything required inside. In addition to the pump and the electronic controller, it also contains the activation and drain valves for the circuits that supply the various zones. Installation times and costs are reduced to a minimum, because troublesome on-site wiring is no longer required. The system hygiene is guaranteed by automatic flushing cycles and by the use of demineralised water, distributing clean and fresh water in the ambient at any time.
Thanks to the new generation controller cpHC, humiFog direct is a cutting-edge product when compared with all products of the competitors as for connectivity functions.
The web server permits access to the complete functionality of the machine from the comfort of your PC, tablet or smartphone. If instead the unit is part of a system controlled by an external supervision or building automation system, the Modbus and Bacnet protocols are already built in, and available for communication via both serial and Ethernet port. A remote control is also possible by enabling the tERA service.
humiFog direct becomes the best solution for relative humidity control in industrial applications such as paper, printing, wood industry, or in the applications aimed at preserving goods and in barrique cellars.-
Mais
- Installation easiness: the control cabinet, the new ventilation heads and the quick-coupling hose kits allow an extremely easy system arrangement, even if the staff is less skilled and has no special tools.
- Low energy consumption: the spontaneous evaporation of water droplets in the air removes sensible heat from the environment (0.69 kW for each litre of water that evaporates), with only 4 W of electric power per litre of atomised water.
- Top hygiene: automatic flushing and filling procedures and connections to the water cleaning systems by reverse osmosis always distribute fresh and clean water in the ambient.
- Connectivity: local monitoring of the system through PC, tablet and smartphone, thanks to the integrated Web server. The communications with the main systems for Building Automation is made easier thanks to the Modbus and BACnet communication protocols, both on serial port and on Ethernet port.
Documentação
Technical
-
Manuals
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +0300073RU Descrição humiFog direct Руководство пользователя Idioma RUS Data 02/05/2019 Versão 1.2 Código +0300073SV Descrição humiFog direct Idioma SWE Data 02/05/2019 Versão 1.2 Código +0300073ES Descrição humifog direct Idioma SPA Data 02/05/2019 Versão 1.2 Código +0300073DE Descrição humiFog direct Idioma GER Data 02/05/2019 Versão 1.2 Código +0300073EN Descrição humiFog direct Idioma ENG Data 02/05/2019 Versão 1.2 Código +0300073IT Descrição humiFog direct Idioma ITA Data 02/05/2019 Versão 1.2 Código +0300073FR Descrição humiFog direct Idioma FRE Data 20/10/2017 Versão 1.1 -
BIM files
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código BIM files humiFog direct Descrição Idioma ALL Data 11/03/2020 Versão R0
Commercial
-
Success Story
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +4000066EN Descrição No more machinery downtime at Ferrarelle CAREL’s in-room solution Idioma ENG Data 07/02/2018 Versão 1.0 Código +4000066IT Descrição Stop ai fermi macchina in Ferrarelle La soluzione CAREL in ambiente Idioma ITA Data 07/02/2018 Versão 1.0 -
Brochure
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +3000018PL Descrição Nawilżanie ma znaczenie! Rozwiązania CAREL dla twoich potrzeb nawilżania Idioma POL Data 15/09/2020 Versão 4.1 Código +3000018ES Descrição ¡La humedad es importante! Humidificadores CAREL, una solución para cada necesidad Idioma ENG SPA Data 15/09/2020 Versão 4.1 Código +3000018EN Descrição Humidity matters! CAREL humidifiers, a solution for every need Idioma ENG Data 15/09/2020 Versão 4.1 Código +3000018DE Descrição Die Feuchte zählt! CAREL-Befeuchter, eine Lösung für jedes Anliegen. Idioma GER Data 15/09/2020 Versão 4.1 Código +3000018IT Descrição L’umidità è importante! Umidificatori CAREL, una soluzione per ogni richiesta Idioma ITA Data 15/09/2020 Versão 4.1 Código +3000193EN Descrição Direct humidification: Advanced solutions for industrial and commercial environments Idioma ENG Data 15/11/2019 Versão 1.1 Código +3000193IT Descrição Umidificazione diretta: Soluzioni all’avanguardia per ambienti industriali e commerciali Idioma ITA Data 15/11/2019 Versão 1.1 Código +3000193NL Descrição Directe bevochtiging Geavanceerde oplossingen voor industriële en commerciële omgevingen Idioma DUT Data 15/11/2019 Versão 1.1 Código +3000193ES Descrição Humectación directa Soluciones avanzadas para ambientes industriales y comerciales Idioma SPA Data 15/11/2019 Versão 1.1 Código +3000193DE Descrição Direkte Raumbefeuchtung Innovative Lösungen für die Industrie und den Handel Idioma GER Data 15/11/2019 Versão 1.1 Código +3000203ES Descrição Industria del vino: Soluciones para el control de la temperatura y la supervisión Idioma SPA Data 04/11/2019 Versão 1.0 Código +3000203EN Descrição Wine industry: Temperature control and supervisory solutions Idioma ENG Data 04/11/2019 Versão 1.0 Código +3000203IT Descrição Industria del vino: Soluzioni per la termoregolazione e supervisione Idioma ITA Data 04/11/2019 Versão 1.0 Código +3000103PT Descrição humiSonic Umidificadores adiabáticos de ultrassons Idioma POR Data 31/10/2019 Versão 2.0 Código +3000120NL Descrição humiFog direct De bevochtigingsoplossing die uw productie verbeterd Idioma DUT Data 07/05/2019 Versão 2.0 Código +3000120IT Descrição humiFog direct la soluzione per l’umidificazione che migliora il tuo business Idioma ITA Data 07/05/2019 Versão 2.0 Código +3000120EN Descrição humiFog direct the humidification solution that improves your business Idioma ENG Data 07/05/2019 Versão 2.0 Código +3000120ES Descrição humiFog direct la solución para la humectación que mejora tu negocio Idioma SPA Data 07/05/2019 Versão 2.0 Código +3000120FR Descrição humiFog direct la solution de l'humidification qui gonfle vos affaires Idioma FRE Data 07/05/2019 Versão 2.0 Código +3000120BG Descrição humiFog direct Решението за овлажняване, което прави Вашия бизнес по-добър Idioma Data 07/05/2019 Versão 2.0 Código +3000120RU Descrição humiFog direct увлажнитель для повышения эффективности производства Idioma RUS Data 07/05/2019 Versão 2.0 Código +3000120DE Descrição humiFog direct Ihre Befeuchtungslösung für mehr Business Idioma GER Data 07/05/2019 Versão 2.0 Código +3000171ZH Descrição On Show at China Refrigeration 2019 Idioma CHI Data 01/04/2019 Versão 2.0 Código +3000179ES.pdf Descrição On Show - Climatización y Refrigeración 2019 Idioma SPA Data 01/10/2018 Versão 1.0 Código +3000173IT Descrição Soluzioni per l’industria del tabacco L’eccellenza per il controllo e il monitoraggio dell’umidità Idioma ITA Data 18/04/2018 Versão 1.0 Código +3000173EN Descrição Solutions for the tobacco industry Excellence in humidity control and monitoring Idioma ENG Data 18/04/2018 Versão 1.0 Código +3000120ZH Descrição Idioma CHI Data 01/02/2017 Versão 1.1 Código +3000054ES Descrição Soluciones para el ahorro energético en los data center Idioma SPA Data 11/10/2016 Versão 2.0 Código +3000106EN_chillventa Descrição On Show - Chillventa 2016 Idioma ENG Data 08/10/2016 Versão 2.0
Local Information
-
Local Information
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +3000018ES Descrição ¡La humedad es importante! Humidificadores CAREL, una solución para cada necesidad Idioma ENG SPA Data 15/09/2020 Versão 4.1 Código +3000018EN Descrição Humidity matters! CAREL humidifiers, a solution for every need Idioma ENG Data 15/09/2020 Versão 4.1
