  • Características gerais

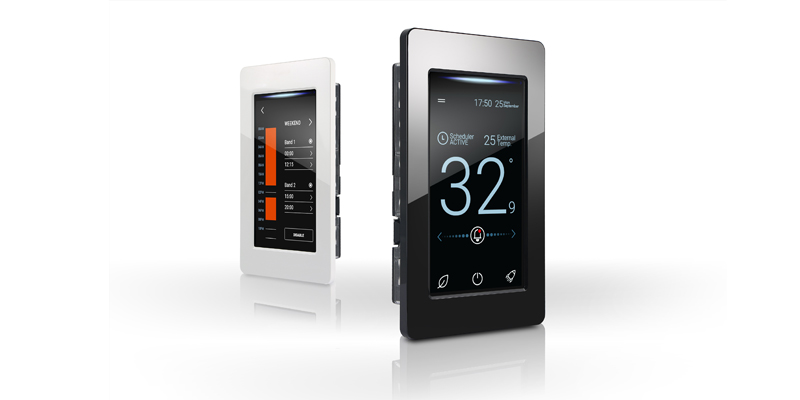

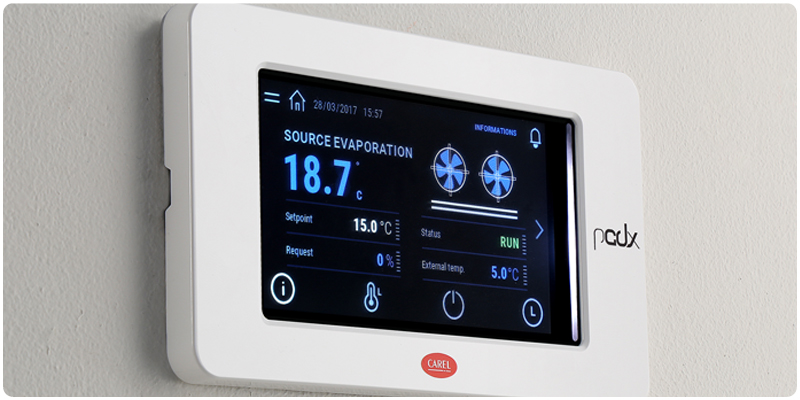

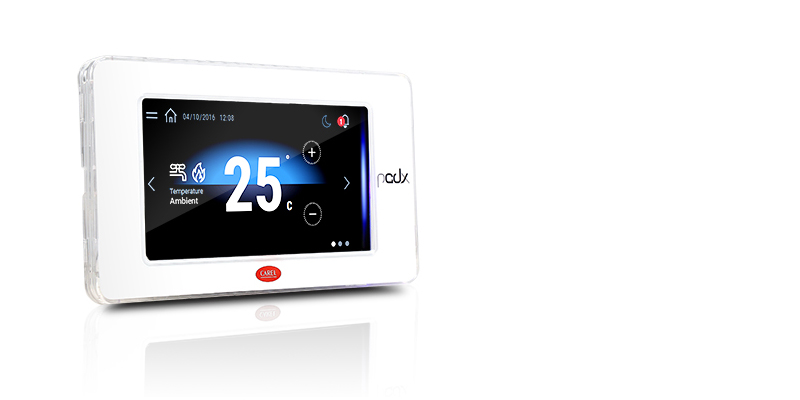

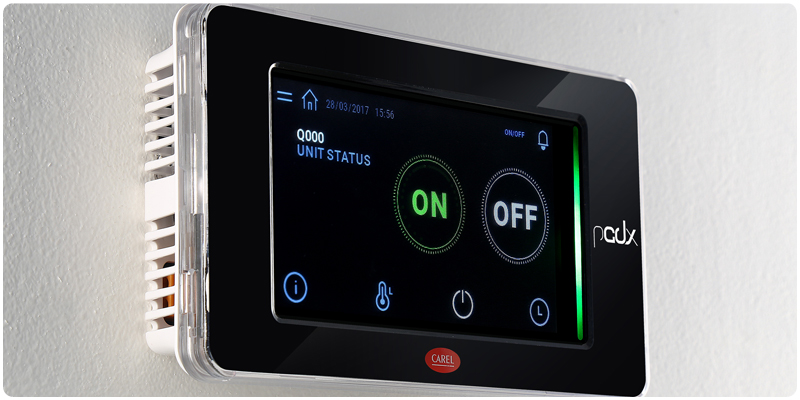

    The pGDx family is CAREL's response to the needs of an increasingly demanding market in terms of size and performance, for interfacing with the pCO and c.pCO sistema family controllers.

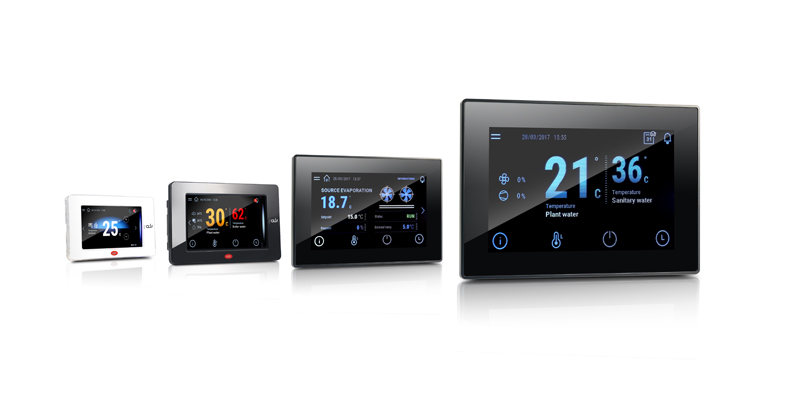

    To ensure maximum flexibility, several different versions are available, in terms of screen size (4.3”, 7”, 10” and 15”), connectivity (RJ12, one or two Ethernet ports, WiFi) and types of touchscreen (resistive/capacitive).

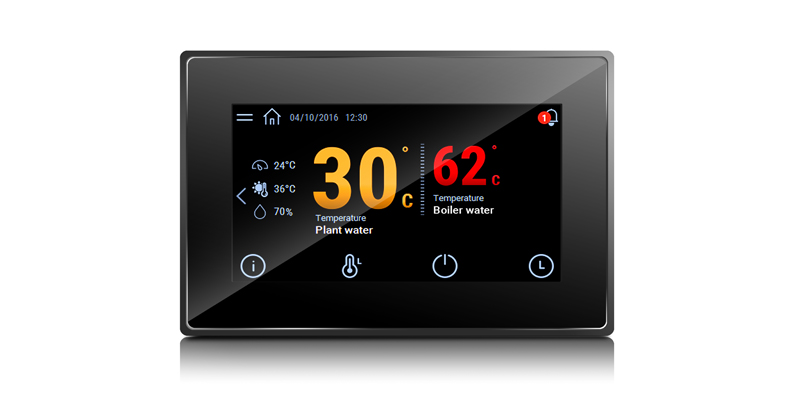

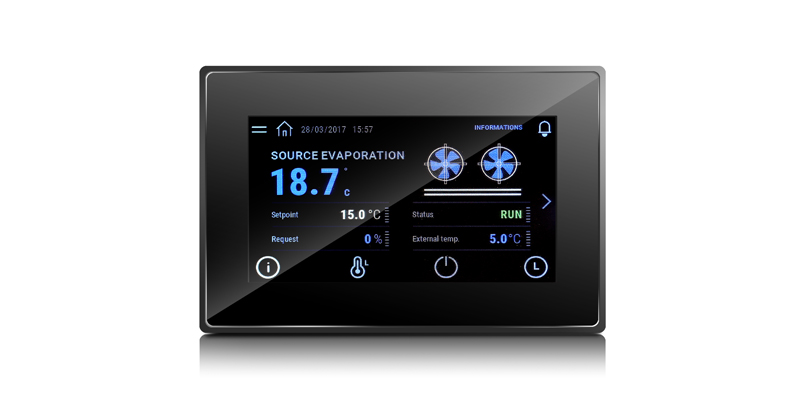

    Starting from the pGDx 4.3”, which can be used to evolve HVAC/R units designed for the pGD1 without modifying any of the electrical connections, the proposal has been expanded to include the brand-new pGDx 7”; this takes the concept of unit terminal to a whole new level, extending connectivity via the WiFi connection (both in Access Point and Station mode). The range is completed by 10” and 15” capacitive displays that guarantee the highest levels of performance.

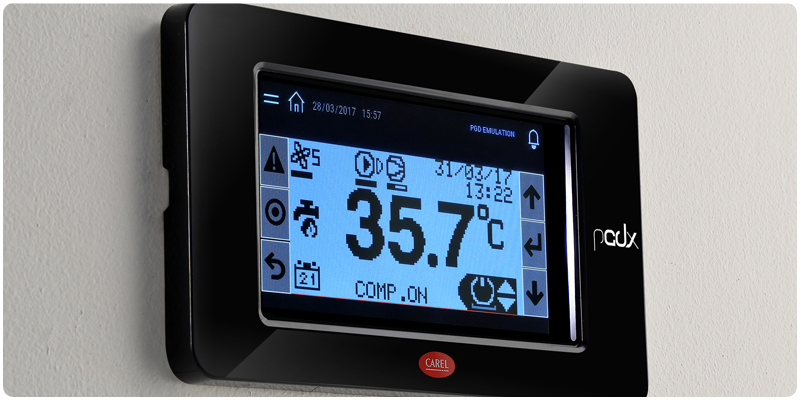

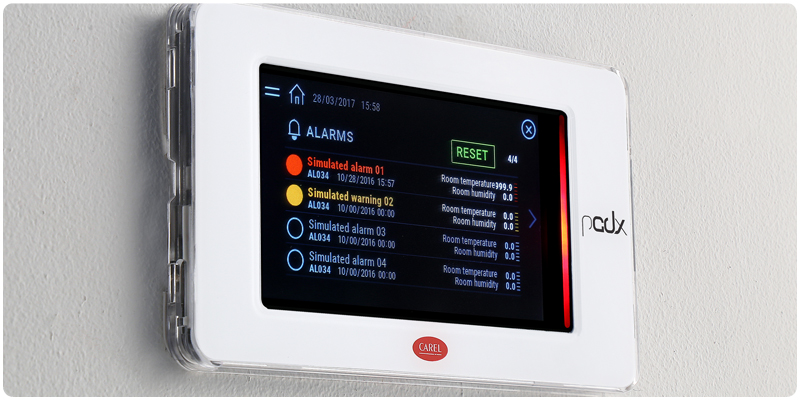

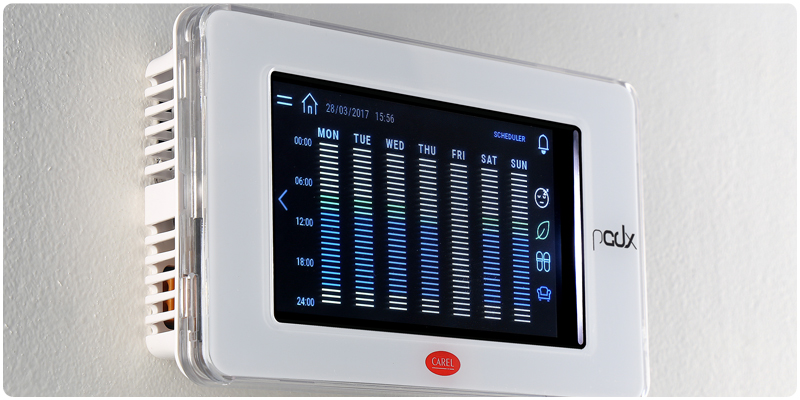

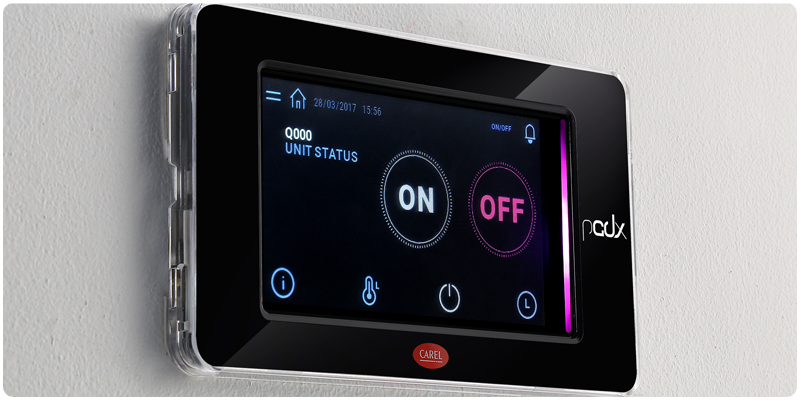

    Furthermore, when combined with specific accessories, the various different models can be installed in multiple applications and a wide range of environments; either as an indoor or outdoor unit terminal, or as a room terminal.
    All of the displays in the new CAREL range are programmable using the c.touch suite, allowing quick conversion of projects created with the previous suite (1tool touch editor for pGDTouch).

  • Mais

    Built-in temperature and humidity probe

    Can share the values read with both the display and the connected controller. This new feature means concrete advantages for the room terminal solution: just one single device can be used, rather than two, to manage the function of both instruments. [valid for 4.3" and 7"]

    Micro-USB port

    At the front, concealed by a faceplate, for easier access. [valid for 4.3" and 7", full USB for 10" and 15"].

    Wifi

    For wireless communication between the unit displays (4.3” and 7”) and the controller networks and any external devices. The displays can be used as a Wireless Access Point (WAP) or as a Wireless Client Station. This makes data control easier. [valid for 4.3" and 7"]

    Dual Ethernet port

    Increases the connectivity and data usage functions. These can in fact be configured in two different ways: dualMAC and switch. [valid for 7", 10" and 15"].

    The CONTROLLA app

    Makes the data easier to read by using the display’s WiFi connection. Using their own mobile device, tablet and/or smartphone, users can view the desired information without needing to interact directly with the display, making it no longer necessary to be physically present.  [valid for 4.3" and 7"]





Documentação

Technical

  • 2D/3D drawings
    Código Descrição Idioma Data * Versão
    Código 2d-3d - pGDX7.zip

    Descrição 2D-3D drawings

    Idioma ALL

    Data 28/02/2020

    Versão R0

    Código 2d-3d pGDX - Panel RJ12.zip

    Descrição 2D-3D drawings

    Idioma ALL

    Data 22/09/2017

    Versão R0

    Código 2d-3d pGDX - Panel serial.zip

    Descrição 2D-3D drawings

    Idioma ALL

    Data 22/09/2017

    Versão R0

    Código 2d-3d pGDX - Wall Surface.zip

    Descrição 2D-3D drawings

    Idioma ALL

    Data 22/09/2017

    Versão R0

    Código 2d-3d pGDX - Wall Flush.zip

    Descrição 2D-3D drawings

    Idioma ALL

    Data 22/09/2017

    Versão R0

    Código 2d-3d pGDX - Panel Serial-Ethernet.zip

    Descrição 2D-3D drawings

    Idioma ALL

    Data 22/09/2017

    Versão R0

  • Technical Leaflets
    Código Descrição Idioma Data * Versão
    Código +050001555

    Descrição pGDx Terminale utente pGDx10” / 15” - pGDx 10” / 15” user terminal

    Idioma ENG  ITA

    Data 05/08/2022

    Versão 1.2

    Código +050001551

    Descrição pGDx 10" Terminale utente pGDx 10” / User terminal pGDx 10"

    Idioma ENG  ITA

    Data 05/08/2022

    Versão 1.2

    Código +05C001950

    Descrição User terminal pGD Touch 7”

    Idioma CHI  ENG

    Data 02/03/2020

    Versão 1.3

    Código +050001898

    Descrição pGDx Графический терминал pGD Touch 4.3” - User terminal pGD Touch 4.3”

    Idioma ENG  RUS

    Data 02/03/2020

    Versão 1.4

    Código +050001897

    Descrição pGDx Terminal del usuario pGDx Touch 4.3” - Terminal usuário pGDx Touch 4.3”

    Idioma POR  SPA

    Data 02/03/2020

    Versão 1.4

    Código +050001896

    Descrição pGDx Terminal utilisateur pGD Touch 4.3” - 4.3-Zoll-Terminal ‹pGD Touch›

    Idioma FRE  GER

    Data 02/03/2020

    Versão 1.4

    Código +050001953

    Descrição pGDx Графический терминал pGDx Touch 7” - User terminal pGDx Touch 7”

    Idioma ENG  RUS

    Data 02/03/2020

    Versão 1.3

    Código +050001952

    Descrição pGDx Terminal del usuario pGDx Touch 7” - Terminal usuário pGDx Touch 7”

    Idioma POR  SPA

    Data 02/03/2020

    Versão 1.3

    Código +050001951

    Descrição pGDx Terminal utilisateur pGDx Touch 7” - 7-Zoll-Terminal pGDx Touch

    Idioma FRE  GER

    Data 02/03/2020

    Versão 1.3

    Código +050001950

    Descrição pGDx Terminale utente pGDx Touch 7” - User terminal pGDx Touch 7”

    Idioma ENG  ITA

    Data 02/03/2020

    Versão 1.3

    Código +05C001895

    Descrição pGDx Touch 4.3” - User terminal pGD Touch 4.3”

    Idioma CHI  ENG

    Data 02/03/2020

    Versão 1.4

    Código +050001895

    Descrição pGDx Terminale utente pGDx Touch 4.3” - User terminal pGD Touch 4.3”

    Idioma ENG  ITA

    Data 02/02/2020

    Versão 1.4
