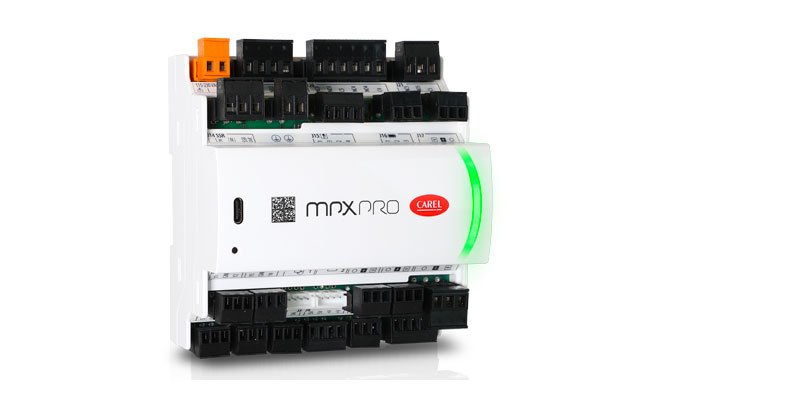

New MPXPRO

SPM*
New MPXPRO
  • Características gerais

    The new MPXPRO extends and improves the range of MPX family controllers, representing the most advanced solution for the control of commercial refrigeration units, from stand-alone cabinets with variable-speed compressors, to remote cabinets and cold rooms with electronic expansion valves. Designed on a flexible and scalable platform, the new MPXPRO responds to the increasingly complex needs of the food retail business, combining high performance and energy efficiency.



    By integrating current sensors that directly monitor electrical loads, any anomalies can be identified quickly, allowing a prompt and reliable service response. These can also provide providing detailed monitoring of overall energy consumption for benchmarking activities and energy performance optimisation.



    In addition to complete control of the unit, the new MPXPRO stands out for the integration of cutting-edge technologies such as NFC and Bluetooth™ (BLE) wireless connectivity, simplifying interaction with mobile devices and facilitating configuration and commissioning via dedicated apps.



    The uniform aesthetics across the entire range, the ease of use and the scalability of the features, combined with the efficiency ensured by the ability to manage modulating devices (fans, heaters, compressors), make the new MPXPRO a strategic element in modern, high-performance, and fully-integrated refrigeration systems.

  • Mais

    The new MPXPRO represents the best performing solution for the control of high-end food retail units.

    Compact dimensions

    In just six DIN modules, it is the most compact controller in its category, ideal for optimising space and performance without compromise.

    Energy monitoring and intelligent prevention

    Thanks to three built-in current sensors, the controller monitors the power consumption of loads in real time, promptly detecting any anomalies and ensuring reliable and proactive control.

    One solution for multiple needs

    One single part number for the direct control of electronic expansion valves, both bipolar stepper (with built-in Ultracap) and PWM, adapting to all application requirements.

    Cutting-edge connectivity

    Up to two independent RS485 serial ports, NFC and Bluetooth™ connectivity included in the user interface for easy interaction with apps, and USB-C port for quick setup and upgrades.

    Advanced versatility

    A versatile I/O to adapt to any need for the management of refrigeration units:

    • up to eight analogue inputs, with the possibility of configuring up to three of them as active probes;
    • three dedicated digital inputs (up to a maximum of five depending on the number of analogue inputs used);
    • version with five or six digital outputs;
    • up to four modulating 0-10 V / PWM outputs for controlling anti-sweat heaters/evaporator fans or variable-speed compressors (VCC).


Documentação

Technical

  • 2D/3D drawings
    Código Descrição Idioma Data * Versão
    Código MSC - MPXPRO - 2D

    Descrição 2D-3D drawings

    Idioma ALL

    Data 15/04/2025

    Versão R.0

  • Manuals
    Código Descrição Idioma Data * Versão
    Código +0300160IT

    Descrição MPXPRO - Controllo elettronico per applicazioni di refrigerazione - Manuale d'uso

    Idioma ITA

    Data 15/06/2026

    Versão 1.1

    Código +0300160DE

    Descrição MPXPRO Elektronische Steuerung für kältetechnische Anwendungen

    Idioma GER

    Data 15/06/2026

    Versão 1.1

    Código +0300160FR

    Descrição MPXPRO Automate de régulation pour les applications de fluide frigorigène

    Idioma FRE

    Data 15/06/2026

    Versão 1.1

    Código +0300160EN

    Descrição MPXPRO - Electronic controller for refrigeration applications - User manual

    Idioma ENG

    Data 15/06/2026

    Versão 1.1

    Código +0300160PL

    Descrição MPXPRO Sterownik elektroniczny do zastosowań w chłodnictwie

    Idioma POL

    Data 09/07/2025

    Versão 1.0

  • Technical Leaflets
    Código Descrição Idioma Data * Versão
    Código +0500199ML_ITA

    Descrição MPXPRO Parti di ricambio Controllo elettronico per applicazioni di refrigerazione commerciale centralizzate

    Idioma ITA

    Data 21/09/2026

    Versão 1.2

    Código +0500199ML

    Descrição MPXPRO Spare parts Electronic controller for centralized commercial refrigeration applications

    Idioma ENG

    Data 21/09/2026

    Versão 1.2

    Código +0500199ML_GER

    Descrição MPXPRO Ersatzteile Elektronische Steuerung für kältetechnische gewerbliche Anwendungen

    Idioma GER

    Data 21/09/2026

    Versão 1.2

    Código +0500196ML_POL

    Descrição Technical leaflet - MPXPRO - Mid Size Controller

    Idioma POL

    Data 22/05/2026

    Versão 1.3

    Código +0500196ML

    Descrição Technical leaflet - MPXPRO - Mid Size Controller

    Idioma ENG

    Data 22/05/2026

    Versão 1.3

    Código +0500196ML_ITA

    Descrição Foglio tecnico - MPXPRO - Mid Size Controller

    Idioma ITA

    Data 22/05/2026

    Versão 1.3

    Código +0500142IE

    Descrição Terminale utente e display remoto per MPXone / User terminal and remote display for MPXone

    Idioma ENG  ITA

    Data 08/05/2026

    Versão 1.4

    Código +0500142EZ

    Descrição AX3000* 用户终端控制与远程显示装置MPXone / User terminal and remote display for MPXone

    Idioma CHI  ENG

    Data 08/05/2026

    Versão 1.4

    Código +0500142FD

    Descrição AX3000* Terminal utilisateur et affi cheur à distance pour MPXone / Bedienteil und Remote-Display für MPXone

    Idioma FRE  GER

    Data 08/05/2026

    Versão 1.4

    Código +0500142RU

    Descrição AX3000* Графический терминал для контроллера MPXone / User terminal and remote display for MPXone

    Idioma ENG  RUS

    Data 08/05/2026

    Versão 1.4

    Código +0500175IE

    Descrição Technical leaflet/ Foglio tecnico HMI Heos - MPX

    Idioma ENG  ITA

    Data 14/04/2026

    Versão 1.2

    Código +0500197ML_POL

    Descrição MPXPRO Elektroniczny sterownik do scentralizowanych zastosowań w chłodnictwie komercyjnym

    Idioma POL

    Data 15/04/2025

    Versão 1.0

    Código +0500197ML_GER

    Descrição MPXPRO Elektronische Steuerung für kältetechnische gewerbliche Anwendungen

    Idioma GER

    Data 15/04/2025

    Versão 1.0

    Código +0500197ML

    Descrição MPXPRO - Electronic controller for centralized commercial refrigeration applications

    Idioma ENG

    Data 15/04/2025

    Versão 1.0

    Código +0500197ML_ITA

    Descrição MPXPRO Controllo elettronico per applicazioni di refrigerazione commerciale centralizzate

    Idioma ITA

    Data 15/04/2025

    Versão 1.0
