EVD module

Características gerais
EVD module is an add-on expansion module for installation alongside UltraCella or SmartCella. It is easy to assemble and connect, and allows energy savings through management of a CAREL EEV.
The module can be mounted directly on a DIN rail or pre-assembled for wall mounting, thanks to special plastic inserts and three wide bypass holes for convenient and safe wiring, while guaranteeing IP65 on the complete enclosure.

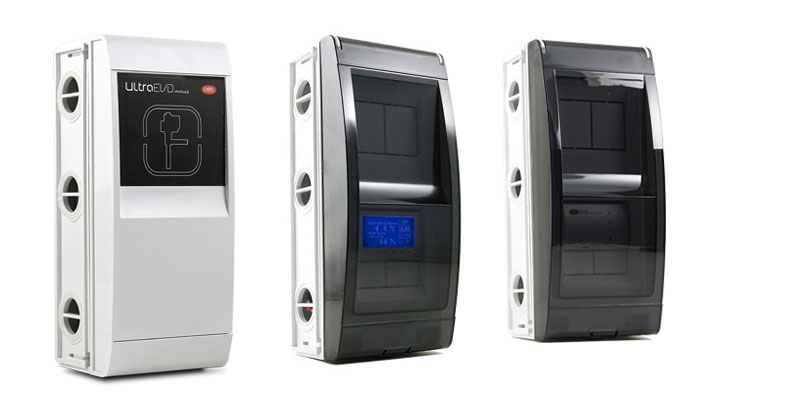

Available in versions with or without display and with or without Ultracap for retrofit applications.
The display simplifies programming, meaning the controller can be started after selecting just a few parameters. Ultracap technology guarantees safe valve closure in the event of power failures, avoiding the need to install a solenoid valve.
UltraCella communicates with EVD Evolution via serial communication, for managing and configuring EVD directly from UltraCella.Main functions:
- superheat control with high pressure, low pressure and low superheat protection
- guided commissioning procedure (selecting just 4 parameters, stand-alone module)
- connection diagram shown on the display
- removable graphic LCD, multi-language interface with online help for the parameters and SI or imperial units of measure
- user management with password to access different configuration levels
- copy parameter values to different EVD devices from the display
- LEDs for monitoring the main parameters
- use of low-power ratiometric pressure transducers with 4 to 20 mA output (these can be shared between several drivers)
- second digital input for defrost management
- possibility to use backup probes
- Ultracap technology that assures safe valve closure in the event of power failures
Combined with the CAREL ExV series electronic expansion valves, the EVD Evolution drivers create an integrated control system that optimises evaporator operation and ensures high energy savings.
Documentação
Technical
-
2D/3D drawings
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código 2d-3d Ultra EVD Module Descrição 2D-3D drawings Idioma ALL Data 10/11/2015 Versão R0 Código 2d-3d Ultra EVD Blind Module Descrição 2D-3D drawings Idioma ALL Data 10/11/2015 Versão R0 -
Manuals
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +0300005CS Descrição EVD evolution Ovladač elektronického expanzního ventilu Idioma CZE Data 20/10/2023 Versão 4.1 Código +0300005DE Descrição EVD evolution Treiber für elektronisches Expansionsventil Idioma GER Data 20/10/2023 Versão 4.1 Código +0300005EN Descrição EVD evolution electronic expansion valve driver Idioma ENG Data 20/10/2023 Versão 4.1 Código +0300005ES Descrição EVD evolution driver para válvula de expansión electrónica Idioma SPA Data 20/10/2023 Versão 4.1 Código +0300005FR Descrição EVD evolution pilote pour vanne d'expansion électronique Idioma FRE Data 20/10/2023 Versão 4.1 Código +0300005IT Descrição EVD evolution driver per valvola di espansione elettronica Idioma ITA Data 20/10/2023 Versão 4.1 Código +0300005PT Descrição EVD evolution driver para válvula de expansão eletrônica Idioma POR Data 20/10/2023 Versão 4.1 Código +0300005RU Descrição EVD evolution Привод электронного расширительного вентиля Idioma RUS Data 20/10/2023 Versão 4.1 -
Technical Leaflets
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +0500087FD Descrição WM00E***00: Ultra EVD Module Modulo di espansione driver valvola elettronica per UltraCella Erweiterungsmodul mit Treiber für elektronisches Ventil für UltraCella Idioma FRE GER Data 22/07/2019 Versão 2.5 Código +0500087IE Descrição WM00E**I00: Ultra EVD Module: Modulo di espansione driver valvola elettronica per UltraCella/ Driver-Valve expansion module for UltraCella Idioma ENG ITA Data 22/07/2019 Versão 2.5
Commercial
-
Application Note
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +4000009DE Descrição Intuitionsbasierter wissenschaftlicher Ansatz Idioma GER Data 11/02/2011 Versão 1.0 Código +4000009EN Descrição A scientific approach applied to intuition Idioma ENG Data 11/02/2011 Versão 1.0 Código +4000009ES Descrição Aproximación científica aplicada a la intuición Idioma SPA Data 11/02/2011 Versão 1.0 Código +4000009FR Descrição Approche scientifique appliquée à une hypotèse Idioma FRE Data 11/02/2011 Versão 1.0 Código +4000009IT Descrição Approccio scientifico applicato all’intuizione Idioma ITA Data 11/02/2011 Versão 1.0 Código +4000009JA Descrição 科学的アプローチの直観化 Idioma JAP Data 11/02/2011 Versão 1.0 Código +4000009PT Descrição Aproximação científica aplicada à intuição Idioma POR Data 11/02/2011 Versão 1.0 Código +4000009ZH Descrição 直观化的 科学方法 Idioma CHI Data 11/02/2011 Versão 1.0 -
Other related documentation
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +3000192IT Descrição Cella Range Soluzioni per celle frigorifere Idioma ITA Data 02/10/2019 Versão 2.0 Código +3000192EN Descrição Cella Range Solutions for cold rooms Idioma ENG Data 02/10/2019 Versão 2.0 Código +3000192DE Descrição Cella Range Lösungen für Kühlräume Idioma GER Data 02/10/2019 Versão 2.0 Código +3000192ES Descrição Cella Range Soluciones para cámaras frigoríficas Idioma SPA Data 02/10/2019 Versão 2.0 -
Success Story
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +4000057EN Descrição Energy savings in cold rooms Idioma ENG Data 20/11/2023 Versão 2.0 Código +4000057IT Descrição Risparmio energetico nelle celle frigo Idioma ITA Data 20/11/2023 Versão 2.0 Código +4000057DE Descrição Energie sparen bei Kühlräumen Idioma GER Data 20/04/2017 Versão 1.0 Código +4000057FR Descrição Économie d’énergie dans les cellules frigorifiques Idioma FRE Data 20/04/2017 Versão 1.0 Código +4000057ES Descrição Ahorro energético en las cámaras frigoríficas Idioma SPA Data 20/04/2017 Versão 1.0 Código +4000057NL Descrição Energiebesparing in koelcellen Idioma DUT Data 20/04/2017 Versão 1.0 Código +4000010ES Descrição Extra economia com CAREL retail sistema Idioma SPA Data 11/02/2011 Versão 1.0 Código +4000010DE Descrição Extra-Energie sparen mit CAREL retail sistema Idioma GER Data 11/02/2011 Versão 1.0 Código +4000010EN Descrição Extra savings with CAREL retail sistema Idioma ENG Data 11/02/2011 Versão 1.0 Código +4000010FR Descrição Plus d’économies avec les Solutions CAREL Retail Idioma FRE Data 11/02/2011 Versão 1.0 Código +4000010IT Descrição Extra risparmio con CAREL retail sistema Idioma ITA Data 11/02/2011 Versão 1.0 Código +4000010PT Descrição Ahorro extra con CAREL retail sistema Idioma POR Data 11/02/2011 Versão 1.0 Código +4000010JA Descrição よりよい省エネを、 CAREL retail sistemaで Idioma JAP Data 11/02/2011 Versão 1.0
Images
-
High resolution images
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código PH14LWM303-ultra-EVD-module-range Descrição CAREL-Refrigeration Parametric Controls-Cella range-EVD module Idioma ALL Data 24/09/2021 Versão R.0 Código PH15LWM301-EVD-module-no-display Descrição CAREL-Refrigeration Parametric Controls-Cella range-EVD module Idioma ALL Data 24/09/2021 Versão R.0
