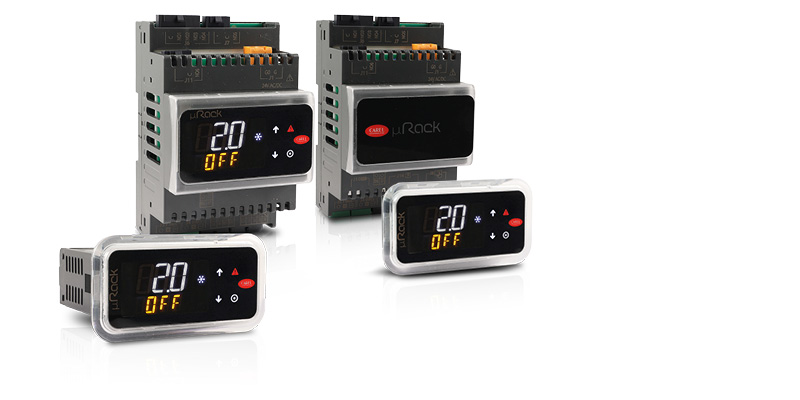

µRack

Características gerais
uRack is the CAREL controller for condensing units and compact compressor racks operating with HFCs and HFOs. The completely new and upgraded hardware platform places the focus firmly on connectivity. Indeed, all uRack functions can be configured directly in the Applica app on your smartphone, connected the controller via Bluetooth or NFC. Two compressor lines (with up to 4+2 compressors), energy saving options (floating condensing stage control, compressor and fan modulation), compressor protection against liquid return and generic functions that can be set directly in the palm of your hand using the Applica app: everything can be easily configured via a user interface that simplifies unit configuration and commissioning in the field.
Completing the connectivity options is a BMS port, available on the entire range, for connection to supervisory systems.-
Mais
Complete management of the compressor rack or condensing unit
Energy saving functions, compressor protection from liquid return, up to two suction lines with 4 and 2 compressors respectively, up to 4 condenser fans.
Simplified unit configuration
Configuration wizard to guide the user, intuitive interface in the Applica app connected to the controller via BLE or NFC.
Versatile controller
Compact dimensions, with panel or DIN rail mounting, suitable for various applications such as condensing units and compressor racks.
Built-in supervisor connection
Thanks to the BMS port available on the entire range.
Vídeo
Documentação
Technical
-
2D/3D drawings
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código U20R00MRK0300 Descrição 2D-3D drawings Idioma ALL Data 11/10/2024 Versão R0 Código U20R00MRK0(29-39)0 Descrição 2D-3D drawings Idioma ALL Data 07/10/2024 Versão R0 Código U20R00MRK0(28-38)0 Descrição 2D-3D drawings Idioma ALL Data 28/10/2022 Versão R0 -
Manuals
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +0300026ES Descrição μRack Solución para motocondensadoras y centrales de refrigeración compactas Idioma SPA Data 10/06/2024 Versão 3.0 Código +0300026RU Descrição Решения для компрессорно-конденсаторных и компактных многокомпрессорных агрегатов Idioma RUS Data 10/06/2024 Versão 3.0 Código +0300026DE Descrição μRack Lösung für Verflüssigersätze und kompakte Verbundkälteanlagen Idioma GER Data 10/06/2024 Versão 3.0 Código +0300026FR Descrição μRack Solution pour les unités de condensation et centrales de réfrigération compactes Idioma FRE Data 10/06/2024 Versão 3.0 Código +0300026PT Descrição μRack Solução para unidades de condensação e centrais frigoríficas compactas Idioma POR Data 10/06/2024 Versão 3.0 Código +0300026ZH Descrição μRack Controller for condensing units and compact compressor racks Idioma CHI Data 10/06/2024 Versão 3.0 Código +0300026EN Descrição μRack - Solution for condensing units and compact compressor racks Idioma ENG Data 10/06/2024 Versão 3.0 Código +0300026IT Descrição μRack - Soluzione per moto-condensanti e centrali frigorifere compatte Idioma ITA Data 10/06/2024 Versão 3.0 Código +0300026PL Descrição μRack Sterownik dla skraplaczy i kompaktowych zespołów sprężarkowych Idioma POL Data 30/01/2023 Versão 2.0 -
Technical Leaflets
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +0500149RU Descrição Техническое описание контроллера ACU / ACU product technical leaflet Электронное управление / Electronic control Idioma ENG RUS Data 08/10/2024 Versão 2.0 Código +0500149IE Descrição ACU product technical leaflet Controllo elettronico / Electronic control Idioma ENG ITA Data 08/10/2024 Versão 2.0 Código +0500210FD Descrição Solution pour les unités à motocondensation et centrales de réfrigération compactes / Lösung für Verflüssigersätze und kompakte Verbundkälte-anlagen Idioma FRE GER Data 11/09/2024 Versão 1.2 Código +0500210IE Descrição μRack Soluzione per motocondensanti e centrali frigorifere compatte / Solution for condensing units and compact compressor racks Idioma ENG ITA Data 11/09/2024 Versão 1.2
Commercial
-
Brochure
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +3000233IT Descrição μRack - Soluzione per moto-condensanti e centrali frigorifere compatte Idioma ITA Data 02/08/2024 Versão 1.3 Código +3000233EN Descrição μRack - Solution for condensing units and compact compressor racks Idioma ENG Data 02/08/2024 Versão 1.3 -
Success Story
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código +4000085EN Descrição Connectivity and energy saving with the new µRack Idioma ENG Data 06/12/2022 Versão 1.0 Código +4000085IT Descrição Connettività e risparmio energetico con il nuovo µRack Idioma ITA Data 06/12/2022 Versão 1.0
Images
-
High resolution images
* Entries are ordered by date
Código Descrição Idioma Data * Versão Código PH21LPR302-µRack-panel Descrição CAREL µRack panel - Compressor rack - Food Retail Idioma ALL Data 08/11/2022 Versão R.0 Código PH21LPR305-µRack-range Descrição CAREL µRack range - Compressor rack - Food Retail Idioma ALL Data 08/11/2022 Versão R.0 Código PH21LPR303-µRack-DIN-Medium Descrição CAREL µRack DIN-Medium - Compressor rack - Food Retail Idioma ALL Data 08/11/2022 Versão R.0 Código PH21LPR304-µRack-DIN-Advanced Descrição CAREL µRack DIN-Advanced - Compressor rack - Food Retail Idioma ALL Data 08/11/2022 Versão R.0 Código PH21LPR307-µRack-range Descrição CAREL µRack range - Compressor rack - Food Retail Idioma ALL Data 08/11/2022 Versão R.0
